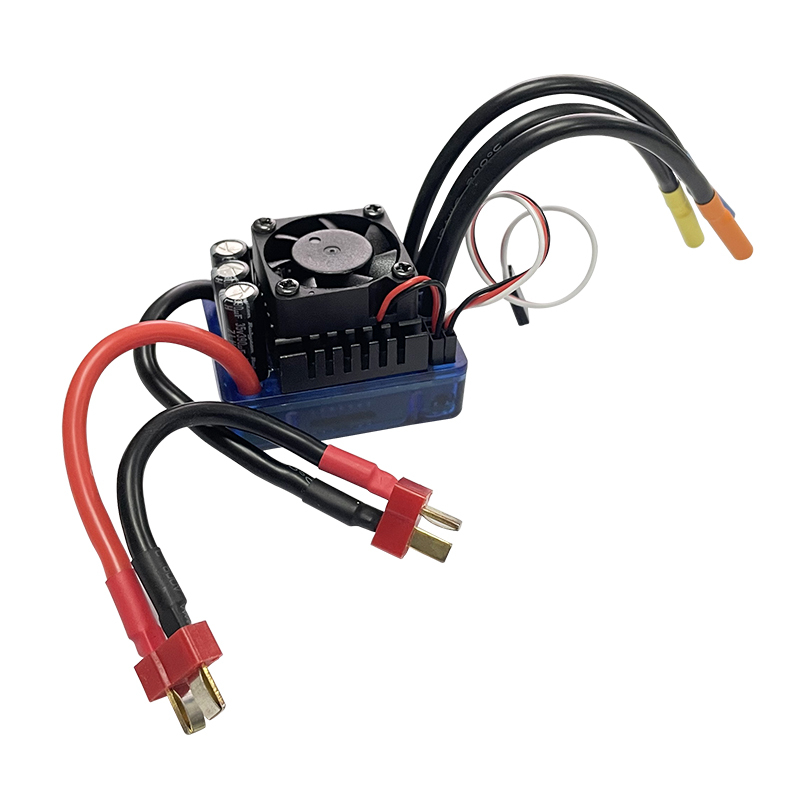

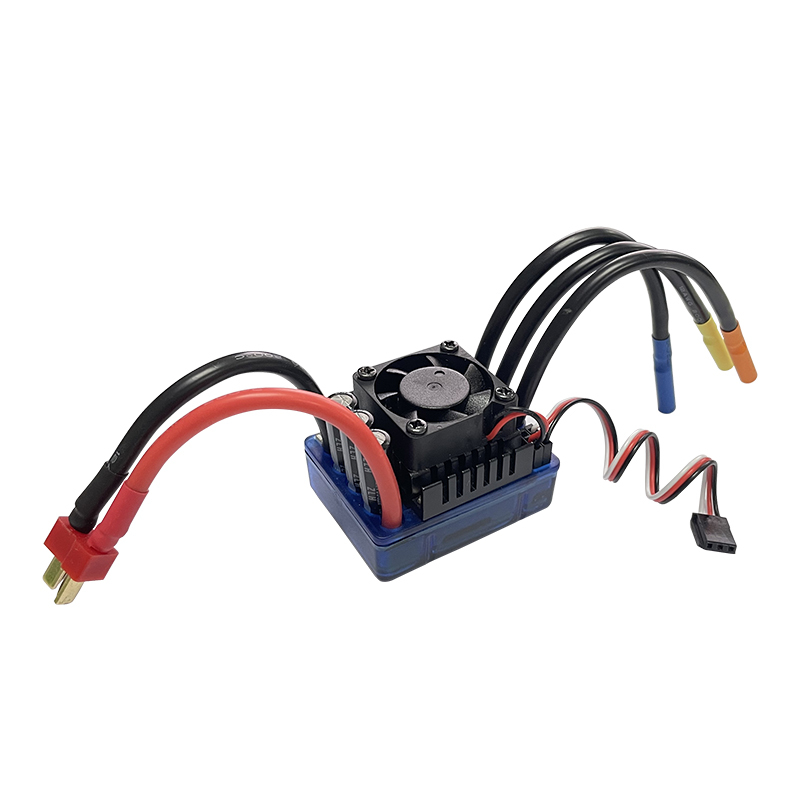

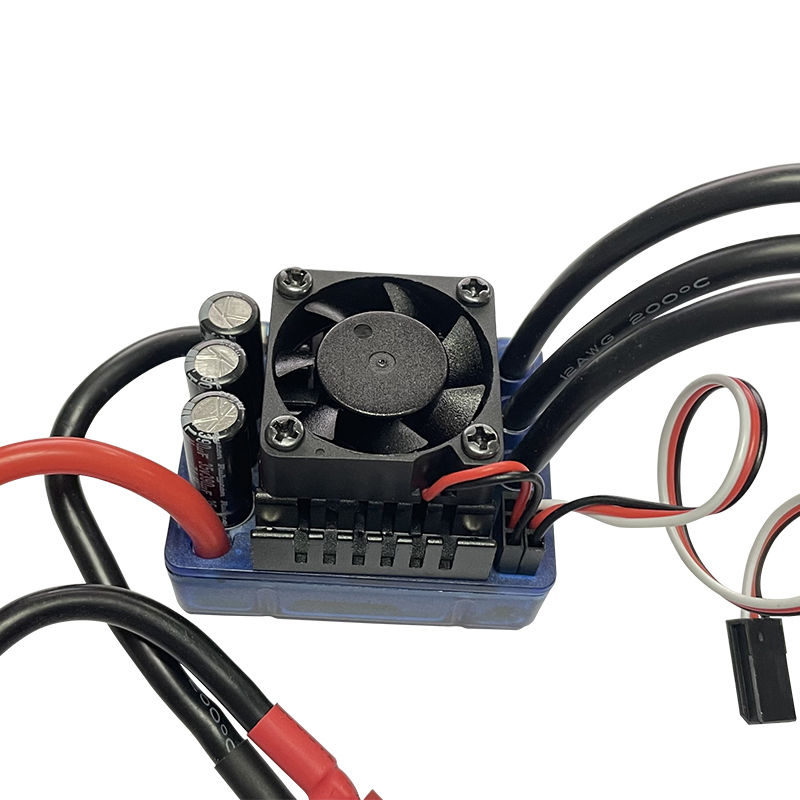

VRX Racing Brushless ESC Electronics Speed Controller For 1/8 rc car and rc auto
SPECIFICATION
| Model | 80 A | 120 A |
| Dimension | 41*51*36mm | 41*51*36mm |
| Cont. Current/ Burst Current |
80A/480A |
120A/600A |
| Motor Type | Sensorless Brushless Motor | Sensorless Brushless Motor |
| Suitable Car |
1/8 car |
1/8 car |
| Suitable Brushless Motor |
>=5.5T |
>=3.5 |
| Resistance |
0.0005ohm |
0.00035ohm |
| Battery |
2~4cells Lipo 4~12 cells NiMH |
2~6cells Lipo 4~18 cells NiMH |
| BEC Output |
6.1V/3A (switch mode) |
6.1V/3A (switch mode) |
Product Features
* Specially designed for RC car with excellent start-up, acceleration and linearity features.
* Compatible with sensorless brushless motor.
* The strong resistant current capability, excellent heat dissipation.
* Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection/
* Easily programmed and compatible with pocket-sized program card.
- Instuctions
- Connect BEC wires with the receiver
- Connect motor wires with ESC
- Turn on the transmitter
- Connect battery pack with ESC then switch on the ESC.
- When the connection of motor and battery is finished, the motor emits “Beep-Beep” tone.
- When the throttle stick is in the neutral position, the motor re-emits “Beep-Beep” tone.
- The ESC is workable.

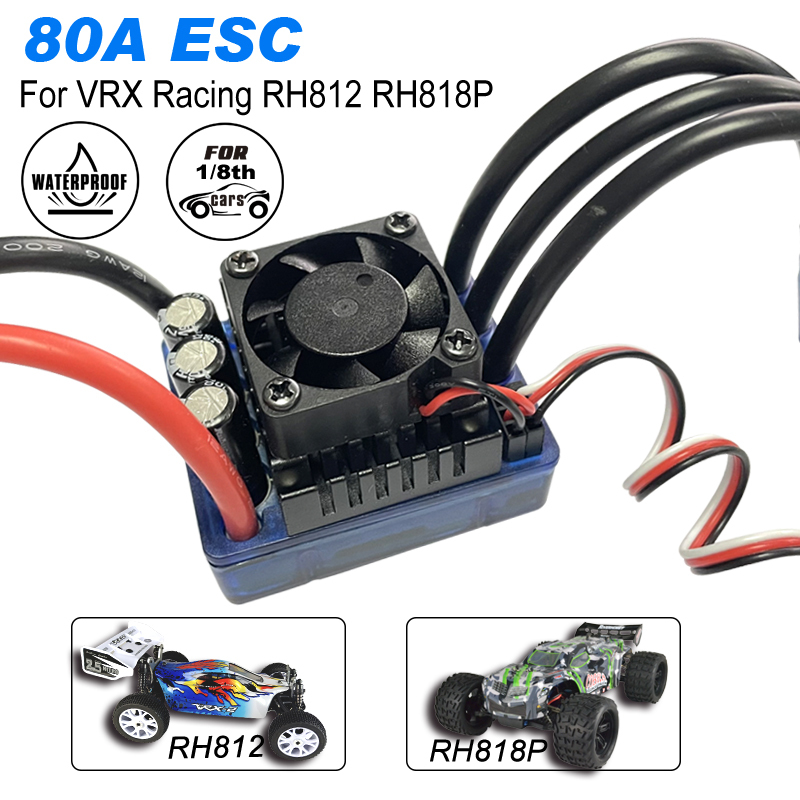

PICTURES OF 80A ESC

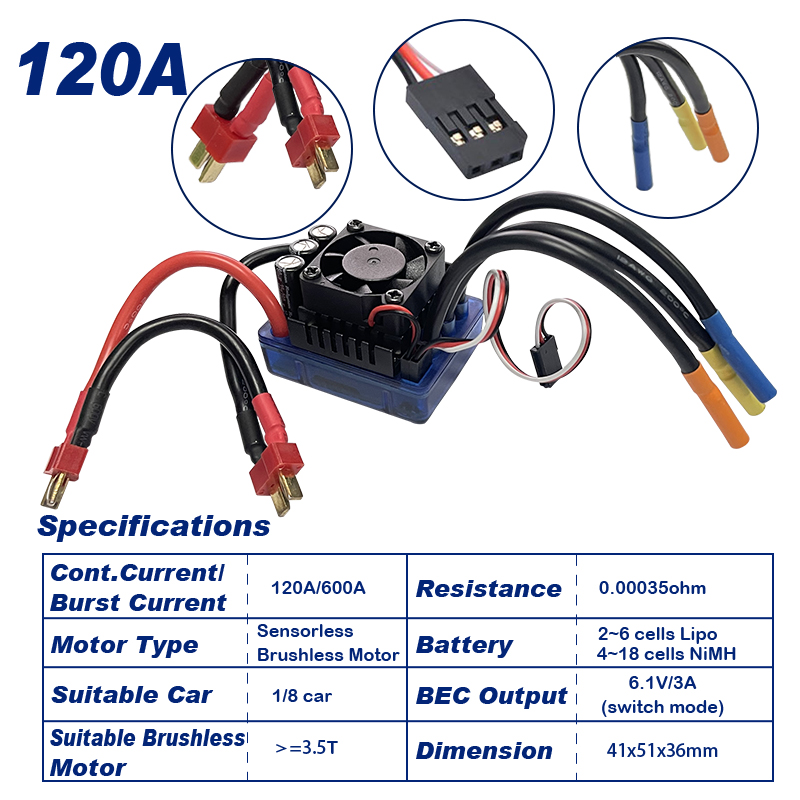

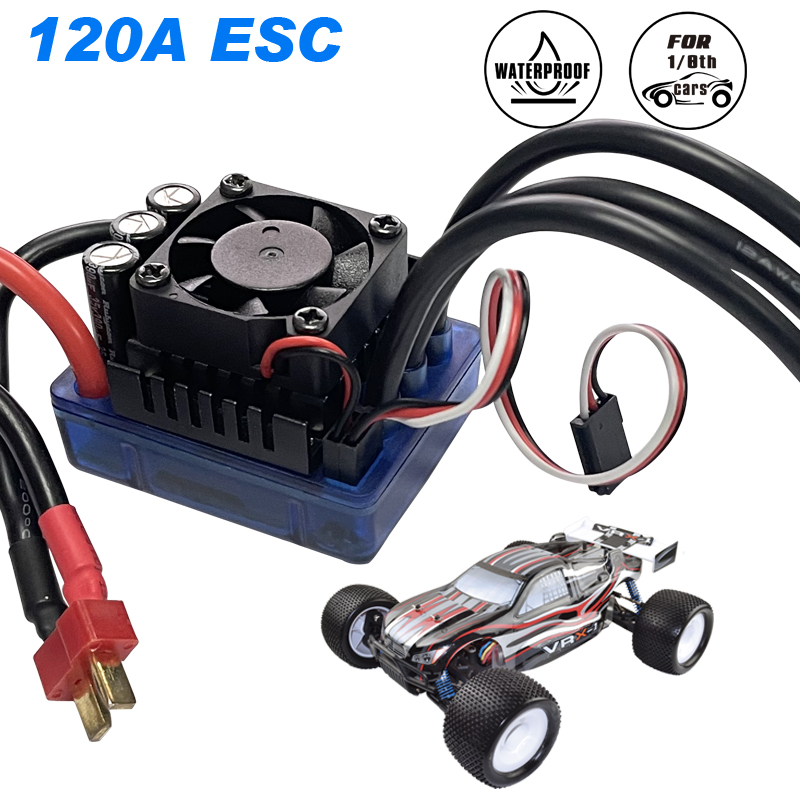

PICTURES OF 120A ESC
Factory photo
This is Electronic Speed Controller (ESC) for car. High power system for RC model is very dangerous, so please read this manual carefully. Since we can’t control over the correct use, installation, application, or maintenance of our products, we’ve no liability shall be assumed nor accepted for any damages, losses or costs resulting from the use of the product. Any claims arising from the operating, failure of malfunctioning etc. will be denied. We assume no liability for personal injury, consequential damages resulting from our product or our workmanship.
